All in one automatic IR thermal imaging temperture measurement sysytem
IR│thermal imagaing│Temperture measurement│face recognization│4G/WIFI/Bluetooth│OTG to WAN

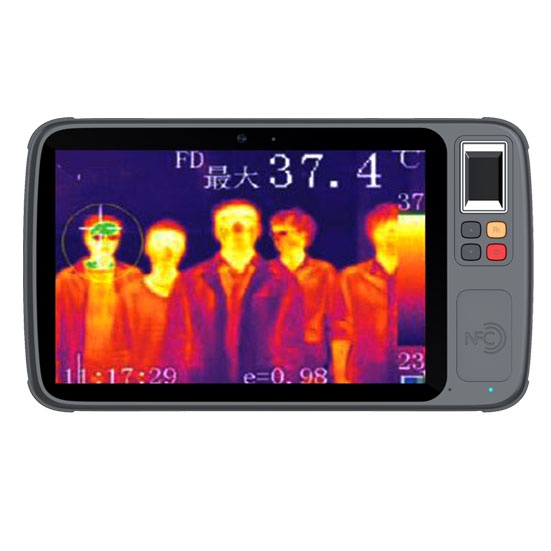

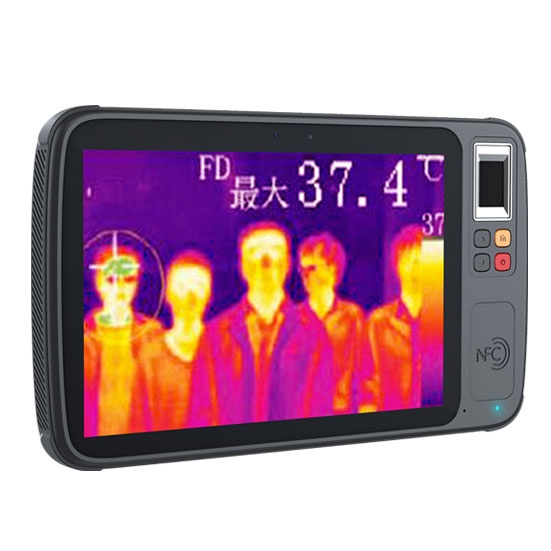

M8-BIR Infrared thermal imaging industrial thermometer

Product features

Infrared resolution:
384*288/256*192 optional configuration


Deployment method:
Fixed/Handheld


Industrial temperature measurement range:

-20℃~+400℃


Industrial temperature measurement accuracy:
±2℃


Human body temperature measurement range:
30℃~45℃


Human body temperature measurement accuracy:
±0.3℃

Product function

IR thermal imaging
temperture measument

face recognition


NFC


ID indentify

4G/WIFI/Bluetooth


  • Introduction
  • Specifications
  • Download


  • Product details >>>


    Brand Name:  MOYOWISE
    Product Name: Infrared Thermography Thermometer

    Features:
    ◆ M8-BIR is an integrated infrared thermography industrial temperature measurement machine.
    ◆ Built-in high-resolution infrared thermography temperature measurement module.
    ◆ Non-contact, to ensure the safety of operators.

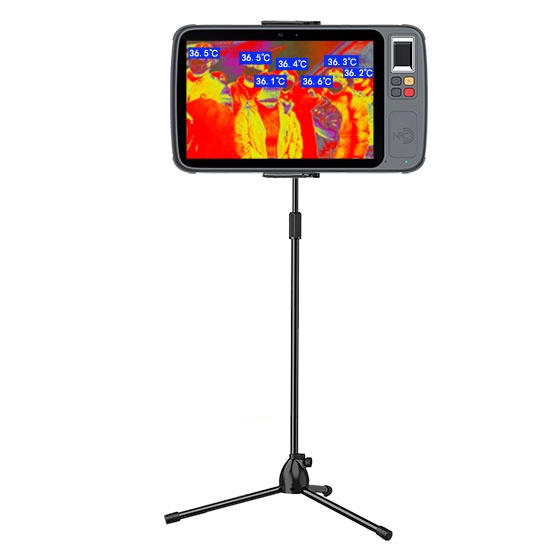

    ◆ Can be fixed, hand-held, flexible application.
    Quick temperature measurement, automatic detection, unattended.
    ◆ 8-inch high-definition display, 9000mAh long standby.
    ◆ IP68 industrial protection, stable and reliable performance.

    ◆ 4G, WIFI, Bluetooth communication, stable signal


    key parameter:

    ◆ Infrared resolution: 384*288/256*192 configuration optional

        Deployment method: fixed/handheld

    ◆ Industrial temperature measurement range: -20℃~+400℃

         Temperature measurement accuracy: ≤±2℃

    ◆ Human body temperature measurement range: 30℃~+45℃

         Temperature measurement accuracy: ≤±0.3℃


    Applications:

    Widely used in epidemic prevention (rapid screening of body temperature), security inspection, medical treatment, R&D or industrial inspection and equipment maintenance, fire prevention, night vision and security, outdoor adventure (observation, search and rescue, night vision, hunting), petrochemical industry (high temperature alarm or Thermal imaging feature alarm), system failure in the power industry, construction, medicine, automotive testing, aerospace non-destructive testing, anti-terrorism, investigation, drug control, border defense (rescue, surveillance, patrol), port channels.



    Product Details >>>




    Subject
    Product model   M8-FIR
    Product brand  MOYOWISE
    Product Name   Infrared Thermal Imaging Thermometer
    Infrared thermography temperature measurement
    Thermal imaging resolution:   384*288/256*192
    Image frame rate   25Hz/50Hz
    Response band   8~14μm
    Temperature measurement correction   shutter correction
    Temperature measurement range   Human body temperature measurement 30℃~+45℃
    Temperature measurement accuracy   Human body temperature measurement ±0.3℃
    Product features   high resolution, automatic temperature measurement, fast speed, wide range
    Witness verification

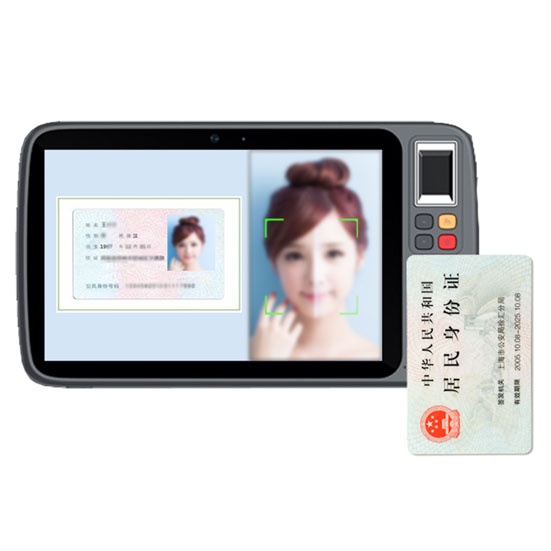

    ID card identification   ID verification, ID card identification, built-in ID card decoding module
    Face detection resolution   8 million pixels
    Camera features   face detection and recognition, auto focus
    Temperature measurement software system
    Features   This machine realizes temperature measurement, identity recognition and statistics, rapid temperature measurement and control
    Simultaneous temperature measurement by multiple people   Support simultaneous temperature measurement within 10 people
    Multi-face recognition   can realize multi-face recognition at the same time, and correlate with multi-person temperature measurement
    ID card identification   can read ID card information on site and correlate with temperature measurement information.
    Temperature measurement data management   data can be flexibly imported and exported, and the device can be stored for 1 month
    Data statistics   temperature measurement data and identity data are closely related
    Cloud data   Scalable development and remote platform data docking
    Development environment
    Operating system   Android(Android)
    SDK  MOYOWISE Terminal Software Development Kit
    Development Language   Java
    Development tools   Eclipse / Android Studio
    Main chip
    CPU   8 core, 2.0GHz
    Memory   4+64G, and support 128G SD expansion
    Basic information
    Body color   Grey
    Body length (mm)  265
    Body width (mm)  195
    Body thickness (mm)  40
    Body weight (g)   1200 grams, Note: Actual weight may vary depending on configuration, manufacturing process, and measurement method.
    Keyboard   power key, volume + key volume-key, 1 function key
    Screen
    Main screen size   8 inches, 1920x1200 resolution
    Display Features   IPS Sunshine Visual Full HD
    Touch
    Touch type   Capacitive touch screen, durable, multi-touch
    Power supply information
    Power Features   4V adapter power supply
    External communication interface
    Data transmission interface   infrared; WIFI; NFC; Bluetooth; WiFi hotspot; OTG interface;
    Charging interface type   Support Type-C, support high voltage fast charge, qc3.0
    USB data port   USB3.0 high-speed transmission, waterproof
    OTG   OTG; support to extend 100M network cable interface
    Number of SIM cards  2
    Number of PSAM cards  1
    Data communication
    Communication network   LTE-FDD: B1/B3/B5/B8;
     LTE-TDD: B34/B38/B39/B40/B41;
     WCDMA:B1/B8; CDMA:BC0; GSM:900/1800MHZ;
    WIFI   Built-in wifi antenna, dual frequency: 2.4G (2402-2482 MHz) /5.8G (5180-5825 MHz), IEEE 802.11a/b/g/n/ac
    Bluetooth   BT4.2 LE standard, 2402-2480 MHz, CLASS 2 power
    Positioning   Integrated GPS, Beidou, GLONASS, built-in antenna, support AGPS
    Extended functions (optional)
    NFC/RFID   supports ISO/IEC 14443 Type A&B, Felica, Mifare
    Fingerprint   optional (customized)
    Phone features
    Three-proof standard   IP68
    Use environment
    Operating temperature   -15 °C to 50 °C
    Storage temperature   -40 to 70
    Ambient humidity   5%RH-95%RH (no condensation)
    Drop specifications   Within the operating temperature range, 6 sides can withstand multiple times (at least 20 times)  Impact from falling to the concrete floor from a height of 1.2 meters
    Rolling test   Rolling for 1000 times 0.5 meters in a row, 6 face contact surfaces still rolling Stable operation, meeting IEC rolling specifications
    Electrostatic discharge   ±12 KV air discharge, ±8 KV contact discharge
    Packaging

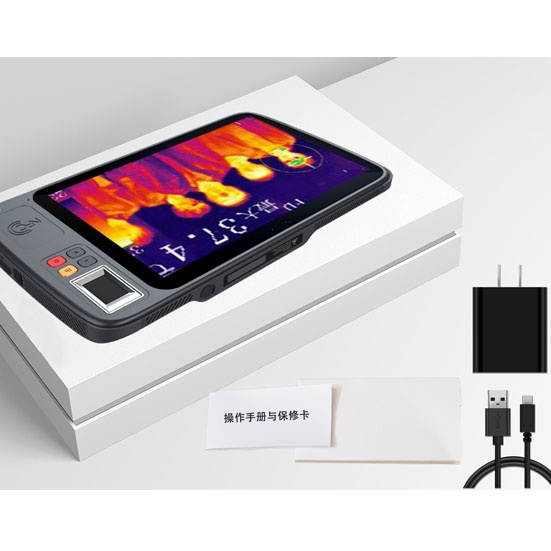

    List   terminal × 1, charger × 1, Type-C data cable × 1, Operation manual × 1Warranty card × 1 (Remark: the actual product shall prevail) Carrying strap (optional), bracket (optional)
