Product center

Temperature measurement range: -20℃~+400℃; deployment method: portable handheld; infrared thermal imaging 256*192 high pixels; non-contact _ fully automatic. infrared thermometer _ thermal imager

M5-BIR Portable thermal imaging temperature measurement device

Product features

Infrared resolution:

256*192/160*120 optional configuration

Deployment method:

Portable handheld

Industrial temperature measurement range:

-20℃~+400℃

Industrial temperature measurement accuracy:

±2℃

Human body temperature measurement range:

30℃~45℃

Human body temperature measurement accuracy:

±0.3℃

Product function

	Infrared thermal imaging		Temperature monitoring screening
	Barcode scanning		NFC read and write
	Witness verification		4G/WIFI/Bluetooth

Introduction

Specifications

Download

Brand Name: MOYOWISE

Product name: Portable infrared thermography thermometer

Features:

◆ M5-BIR is a portable infrared thermal imaging thermometer.

◆ Built-in high-resolution infrared thermography temperature measurement module.

◆ Non-contact, to ensure the safety of operators.

◆ Portable handheld, flexible application.

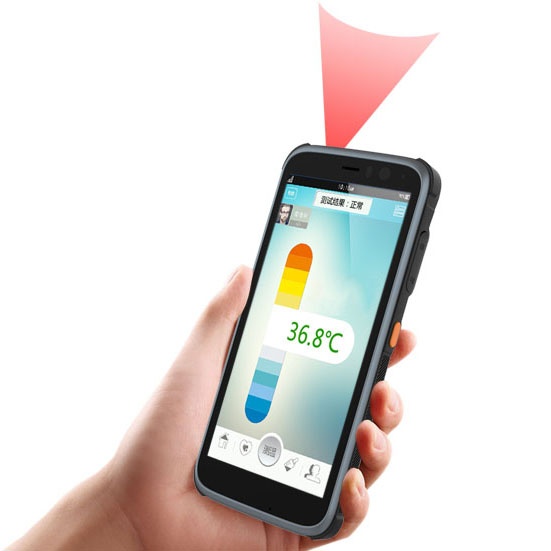

◆ Quick temperature measurement and automatic detection.

◆ 5.7 -inch high-definition display, 5000mAh long standby.

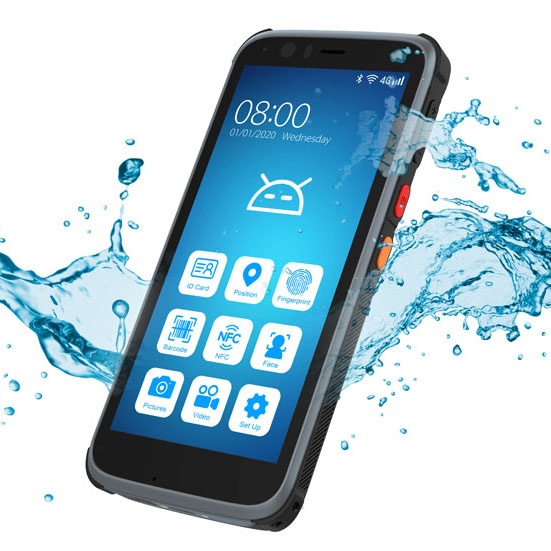

◆ IP65 industrial protection, stable and reliable performance.

◆ 4G, WIFI, Bluetooth communication, stable signal

key parameter:

◆ Infrared resolution: 256*192/160*120 optional configuration

Deployment method: portable handheld

◆ Industrial temperature measurement range: -20 ℃～+400 ℃

Temperature measurement accuracy: ≤± 2 ℃

◆ Human body temperature measurement range: 30 ℃～+45 ℃

Temperature measurement accuracy: ≤± 0.3 ℃

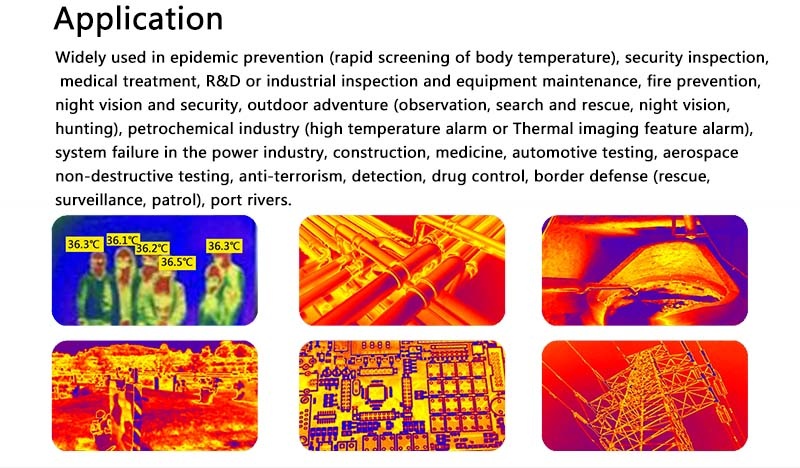

Applications:

Widely used in epidemic prevention (rapid screening of body temperature), security inspection, medical treatment, R&D or industrial inspection and equipment maintenance, fire prevention, night vision and security, outdoor adventure (observation, search and rescue, night vision, hunting), petrochemical industry (high temperature alarm or Thermal imaging feature alarm), system failure in the power industry, construction, medicine, automotive testing, aerospace non-destructive testing, anti-terrorism, detection, drug control, border defense (rescue, surveillance, patrol), port rivers.

Product details >>>

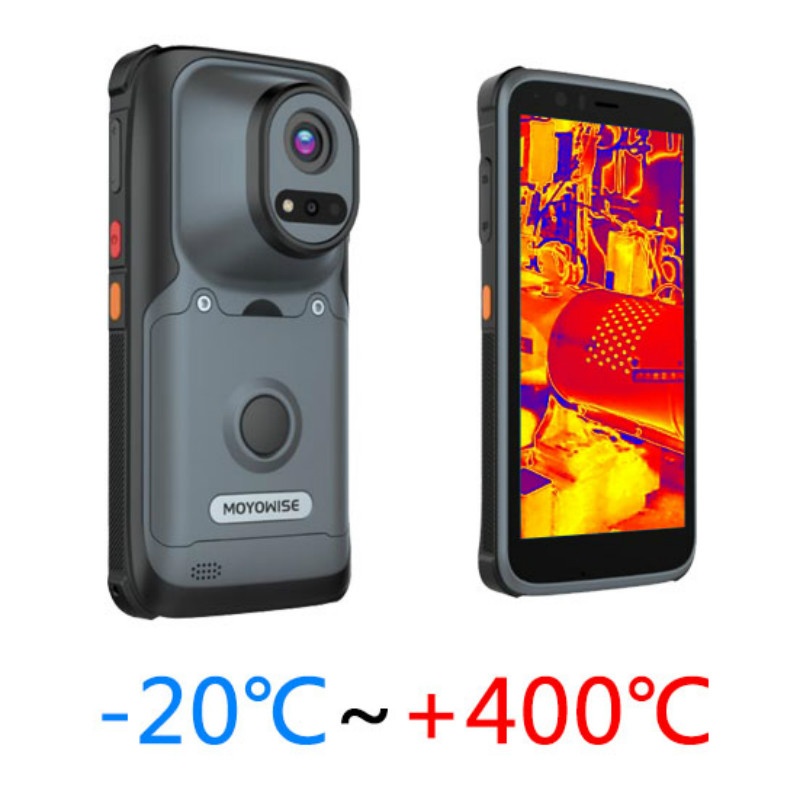

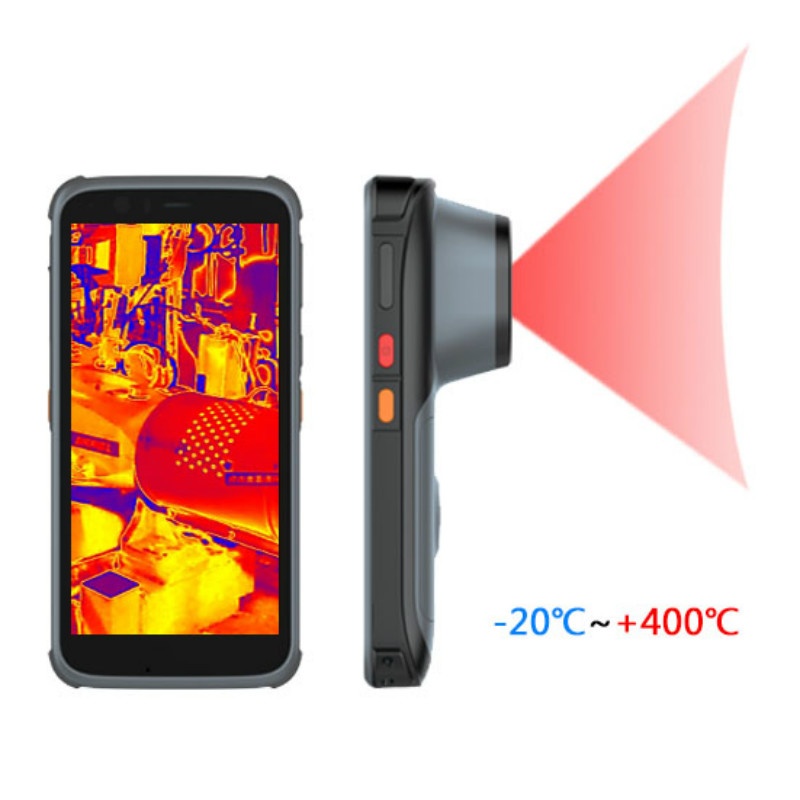

Infrared thermal imaging handheld terminal

Wide temperature measurement range

High resolution

Wide range of applications

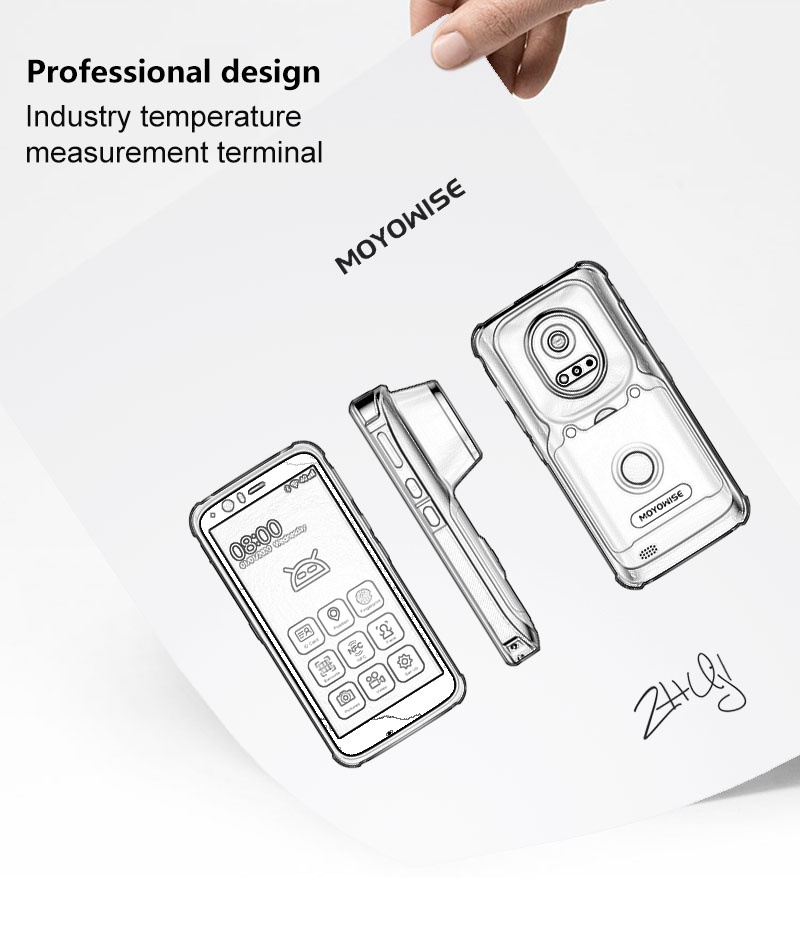

Humanized design, beautiful appearance

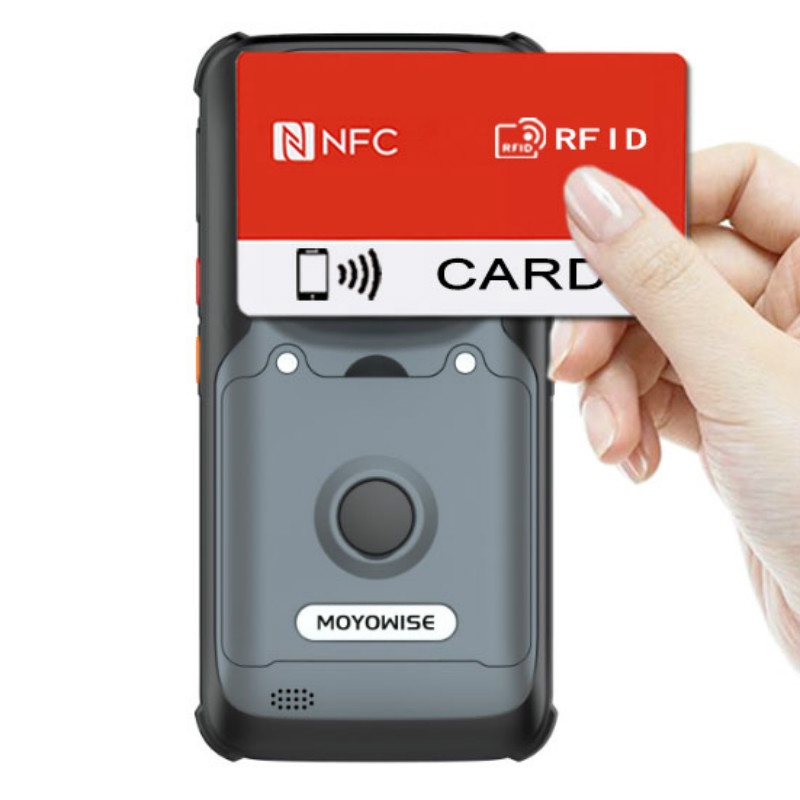

RFID reading

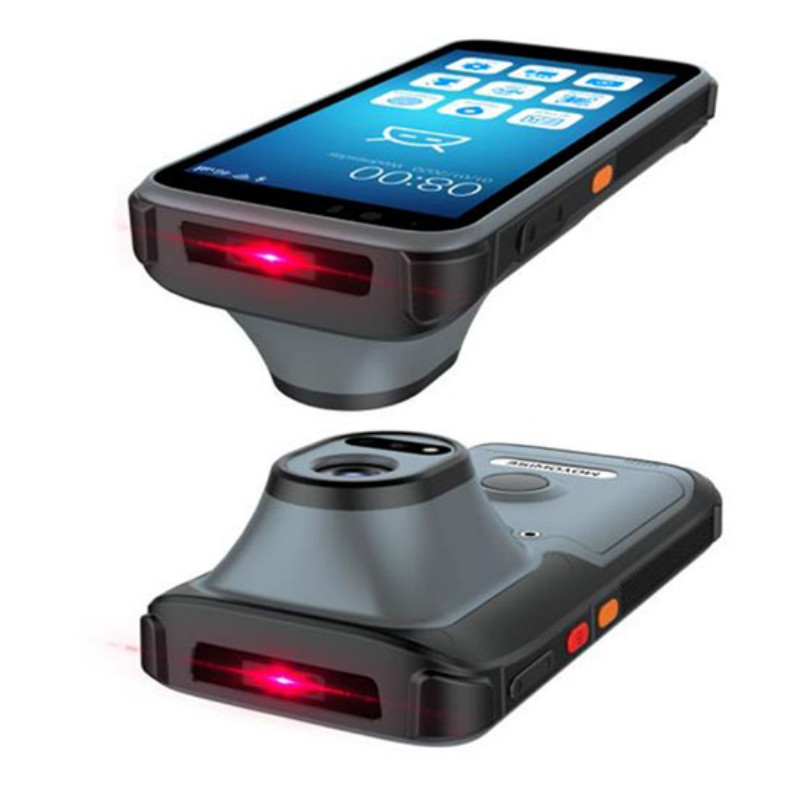

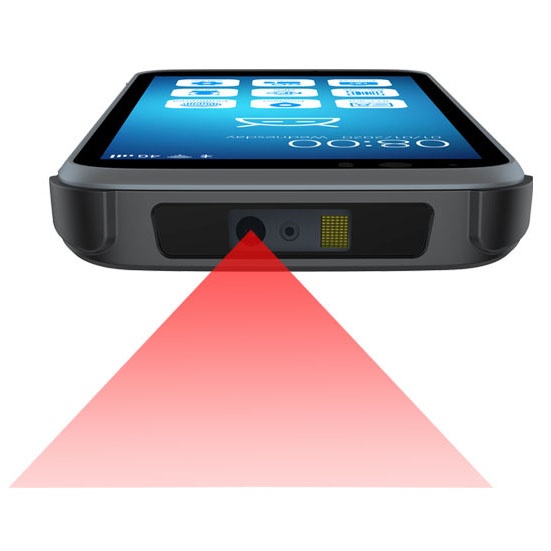

Barcode scanning

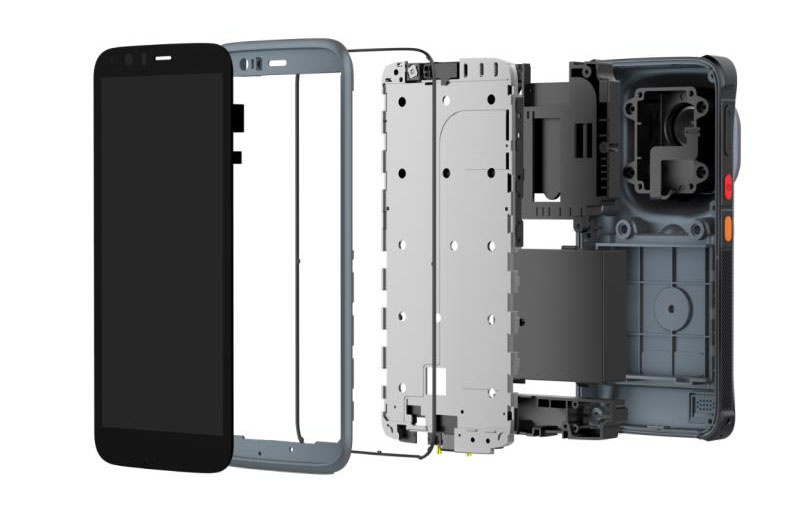

Sturdy structure，Industrial quality design

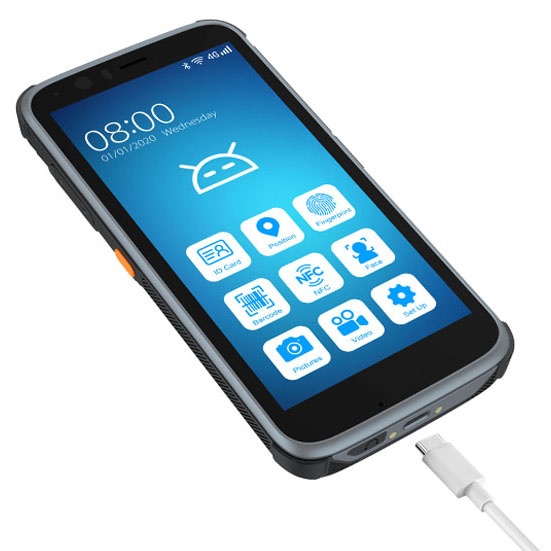

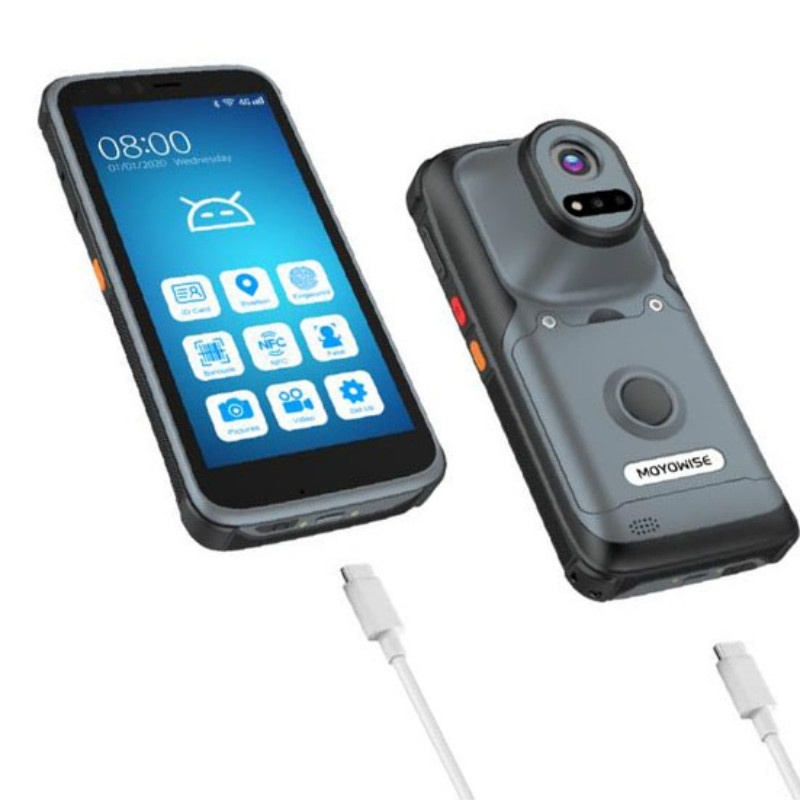

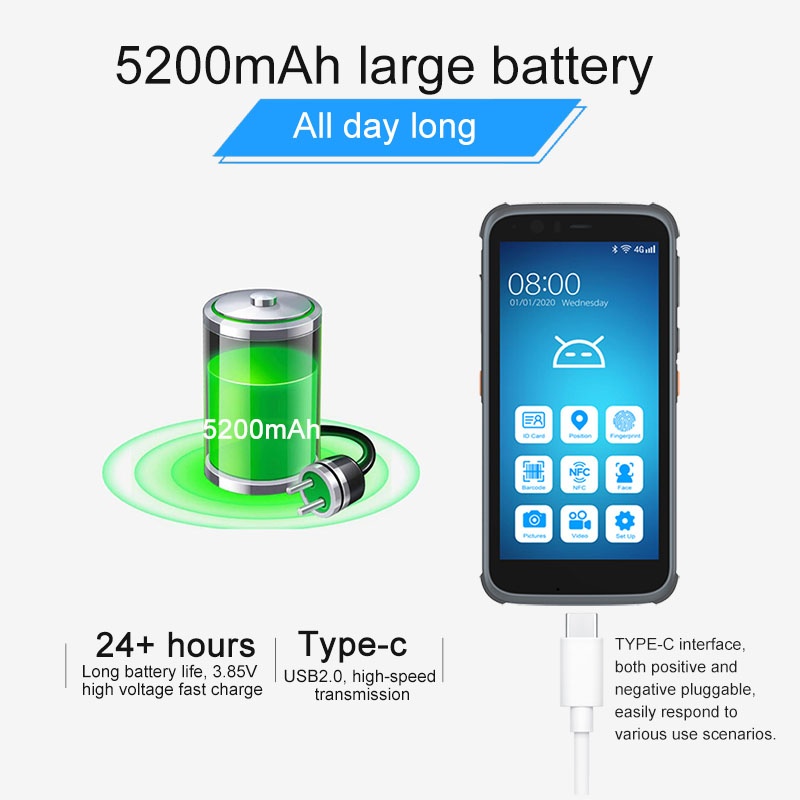

Type-c high-speed charging

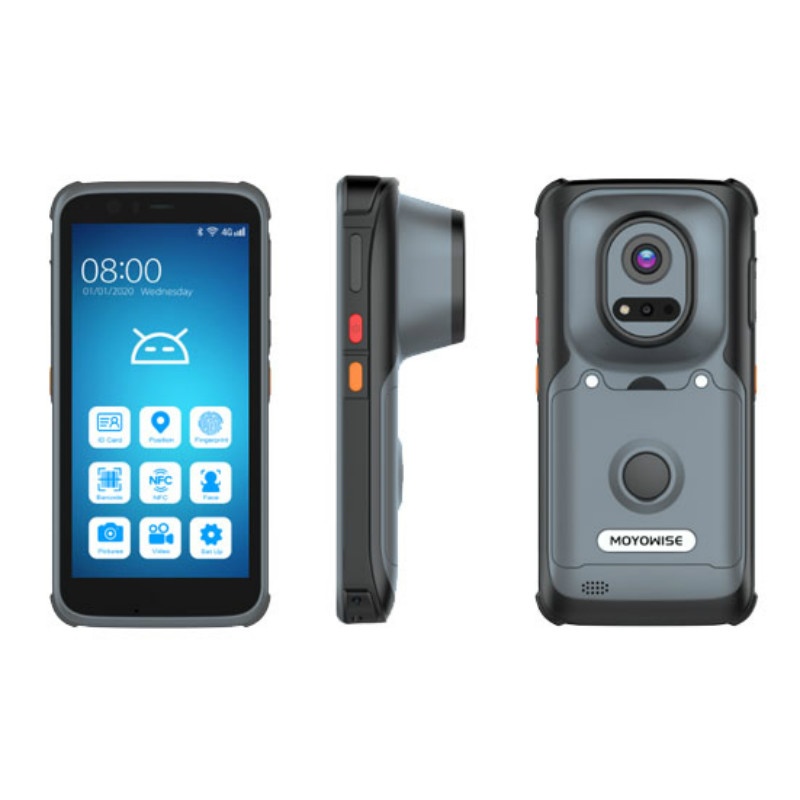

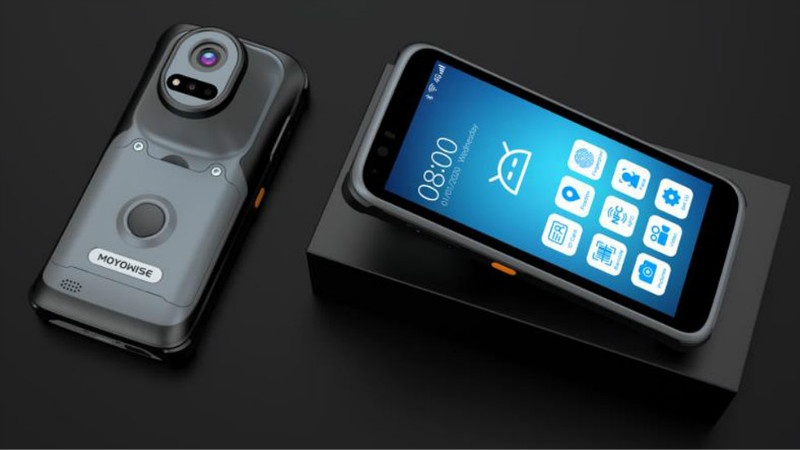

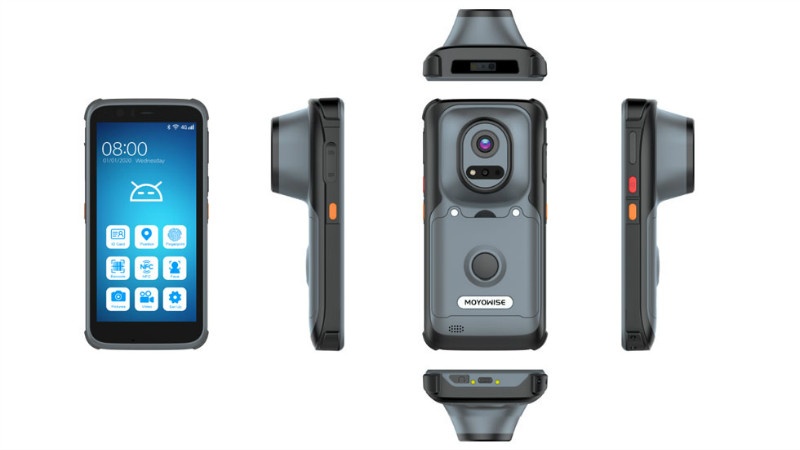

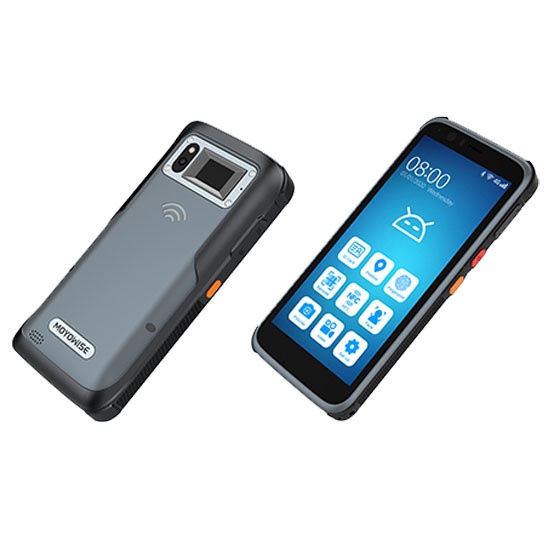

Machine show

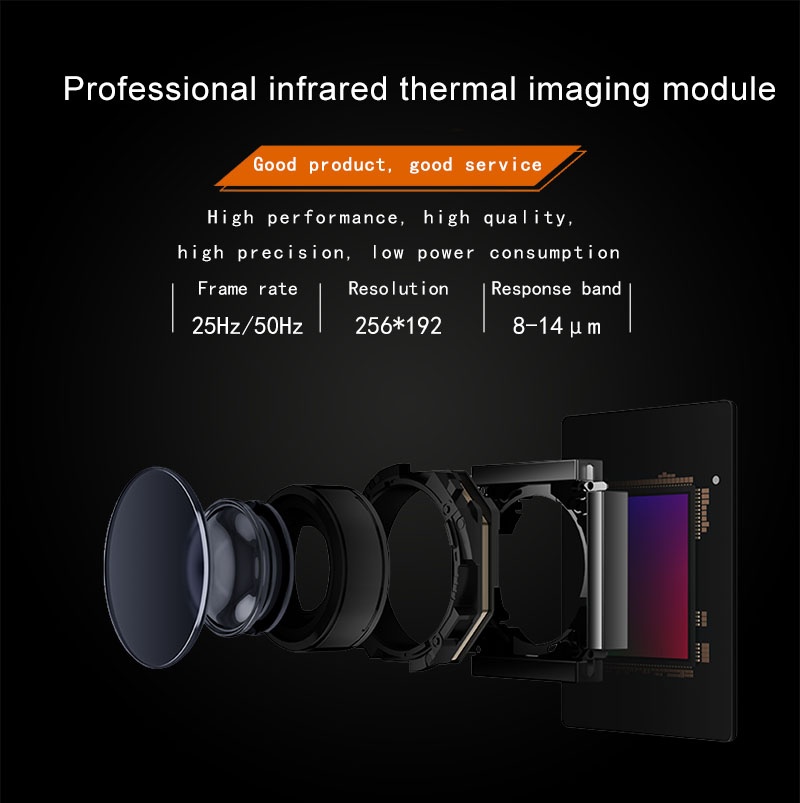

Infrared thermal imaging module
Thermal imaging resolution	256192 or Optional 160120
Image frame frequency	25Hz/50Hz
Response wave band	8~14μm
Temperature correction	The shutter correction
Measuring Range	Body temperature: 30℃ ~ +45℃, Industrial temperature: -20℃ ~ +400℃
Measuring accuracy	Body temperature: ≤ ±0.3℃, Industrial temperature:≤ ±2℃
Temperature measuring software system
Feature	The machine realizes temperature measurement statistics and rapid temperature measurement control
Data management	Flexible data import and export, can be saved for 1 month in the device
Data statistics	The temperature data are closely related to the measured object
Cloud data	Scalable development and remote platform data docking
Development environment
OS	Android 9.0
SDK	Support
Development language	Java
Development tool	Eclipse / Android Studio
Master chip
CPU	Qualcomm SDM450, Octa-core, 1.8Ghz
Storage	4GB+64GB flash, support up to 128GB Micro SD card
Basic information
Color	Grey
Length	165 mm
Width	80 mm
Thickness	23 mm (the position of the thermal imaging module is 47.5mm)
Weight	550g (the actual weight may vary according to configuration, manufacturing process and measurement method)
Button	Power button, volume + /volume - , 1 x function key
Screen
Display	5.7 inch IPS, resolution 1440*720, brightness 400lux

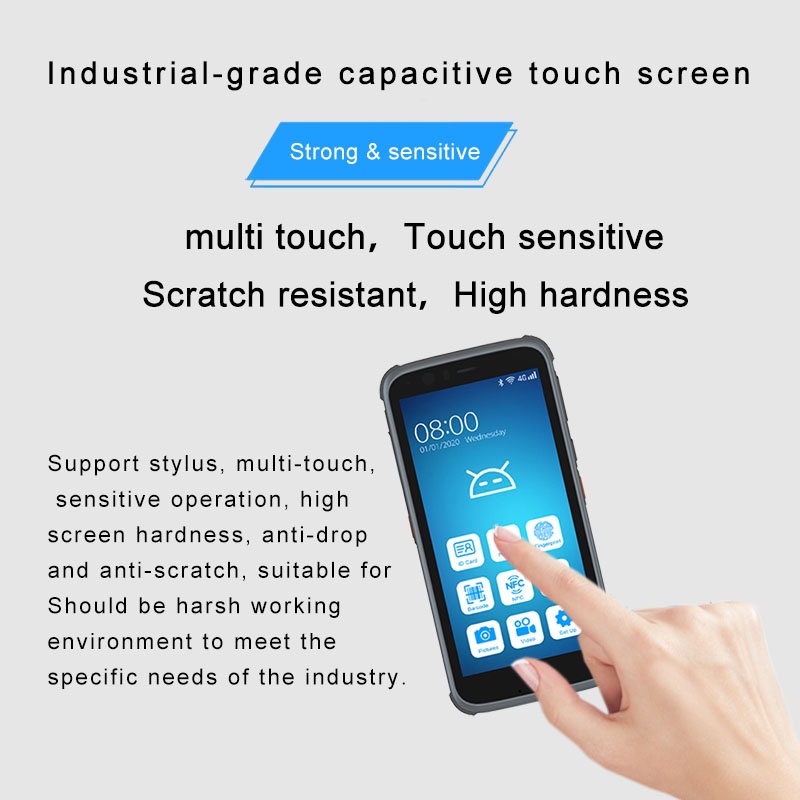

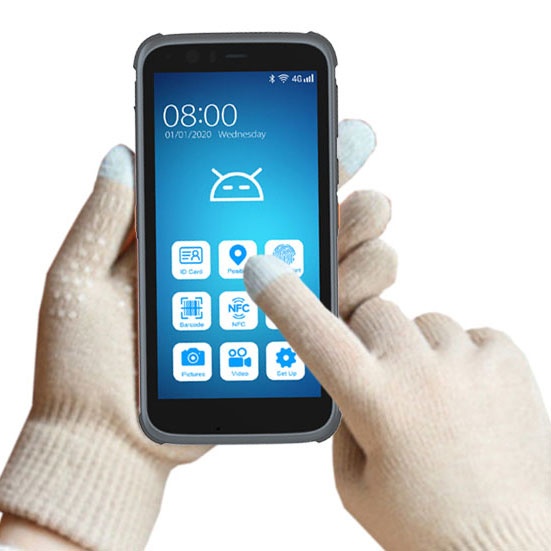

Touch screen	High hardness capacitive touch screen, multi-touch support
Battery
Capacity	Built-in non-detachable polymer battery, 5000mAh
Battery voltage	3.85V
Feature	High density battery
Communication interface
Data transmission interface	WIFI, NFC, Bluetooth, WIFI hotspot, OTG
Charging interface	Support Type-C, support Qualcomm QC3.0 protocol
USB	USB2.0
SIM slot	2 SIM card slots
Data communication
Communication network	LTE-FDD:B1/B3/B5/B7/B8/B20; LTE-TDD: B38/B39/B40/B41; WCDMA:B1/B2/B5/B8; GSM:900/1800MHZ;
WIFI	Built-in type, dual frequency support: 2.4g (2402-2482 MHz) / 5.8g (5180-5825 MHz), IEEE 802.11a/b/ G /n/ac
Bluetooth	Support BT4.2 LE standard, 2402-2480 MHz, CLASS 2 power
GPS	Support GPS/AGPS, GLONASS, accuracy 8m
Optional functionality
NFC reader	NXP PN548 chip 13.56MHz frequency 1~4 cm reading range Support ISO/IEC 14443 A/ B, ISO15693, MiFare one S50/S70, CPU card, NFC cards and tags
QR code scanner	1D/2D barcode scanner
Work environment
Working temperature	-15 °C ~ 50 °C
Storage temperature	-40 ℃ ~ 70 ℃
Environmental humidity	5%RH - 95%RH (no condensation)
Packing
List	Device (built-in battery) × 1, Charger × 1 Type-C data cable × 1, User manual × 1 Warranty card × 1 (Remarks: the final product shall prevail)
